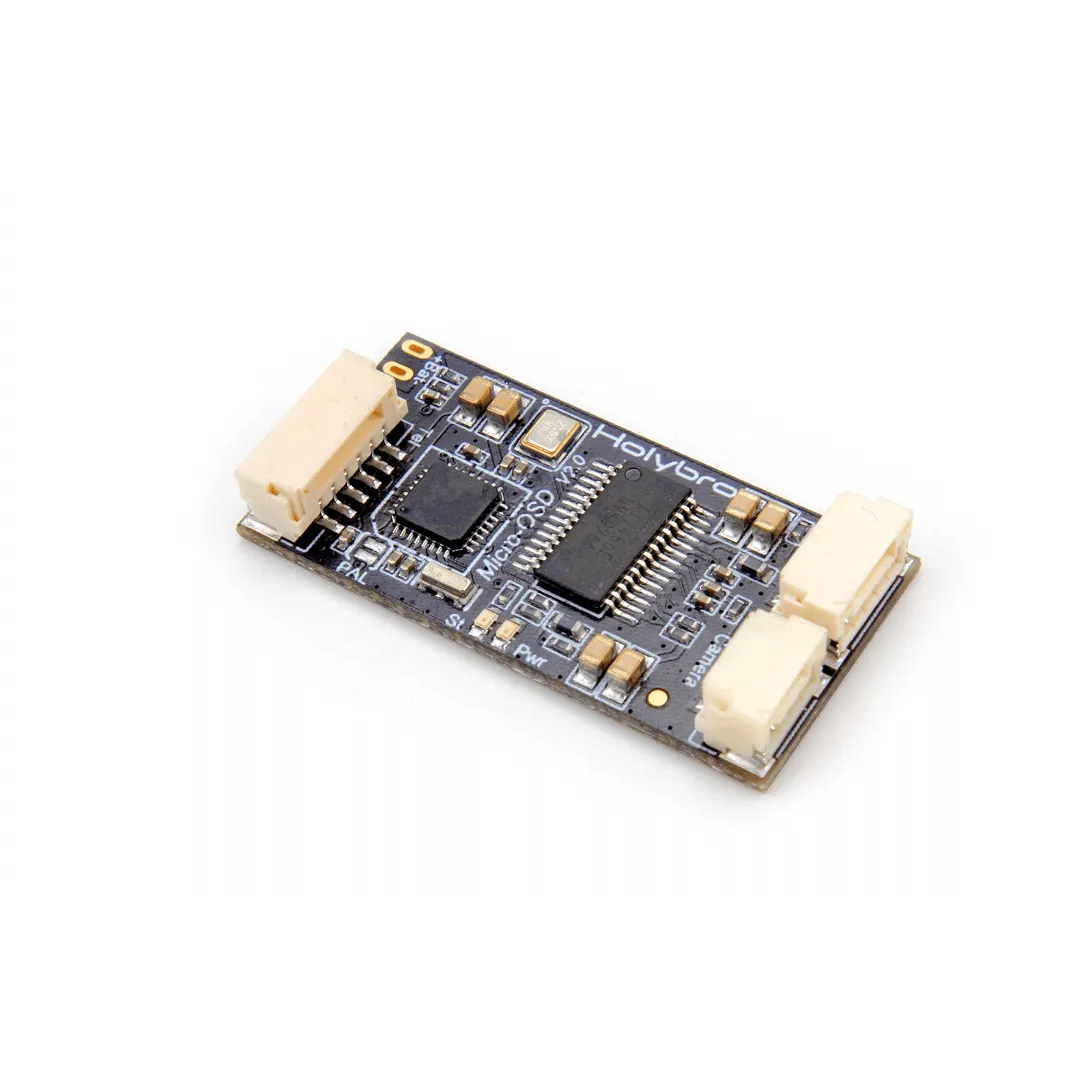

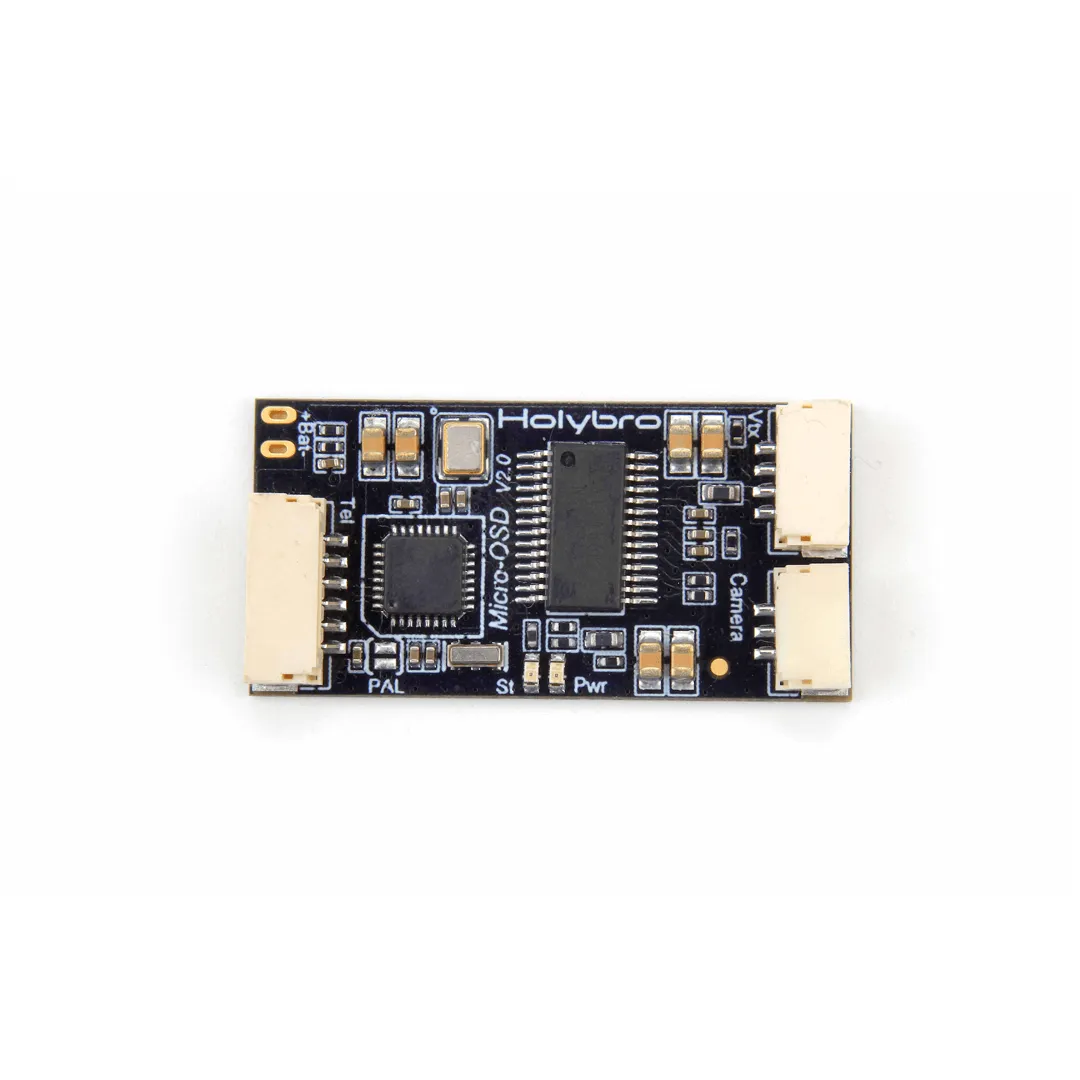

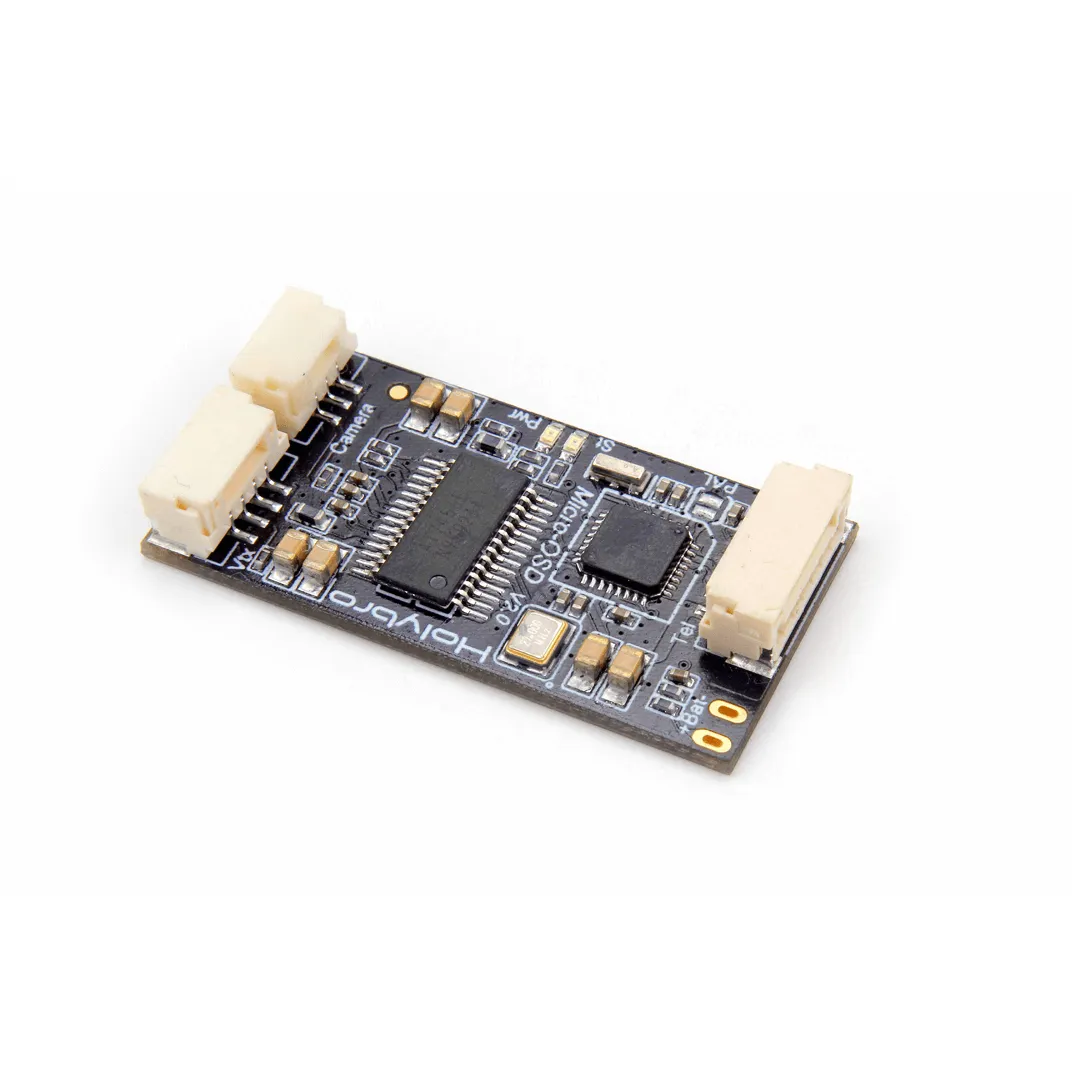

VTX & OSD
Specifications:
- ATmega328P with Arduino bootloader
- MAX7456 monochrome on-screen display
- Standard 6-pin ISP header
- Solder jumper for PAL video option
- Exposed test points for HSYNC and LOS
- Dimensions:17.5*35mm
- Weight:3g
Note:BAT is direcrly connected with VTx and Camera (Pay attention to the max with stand voltage of your equipment)

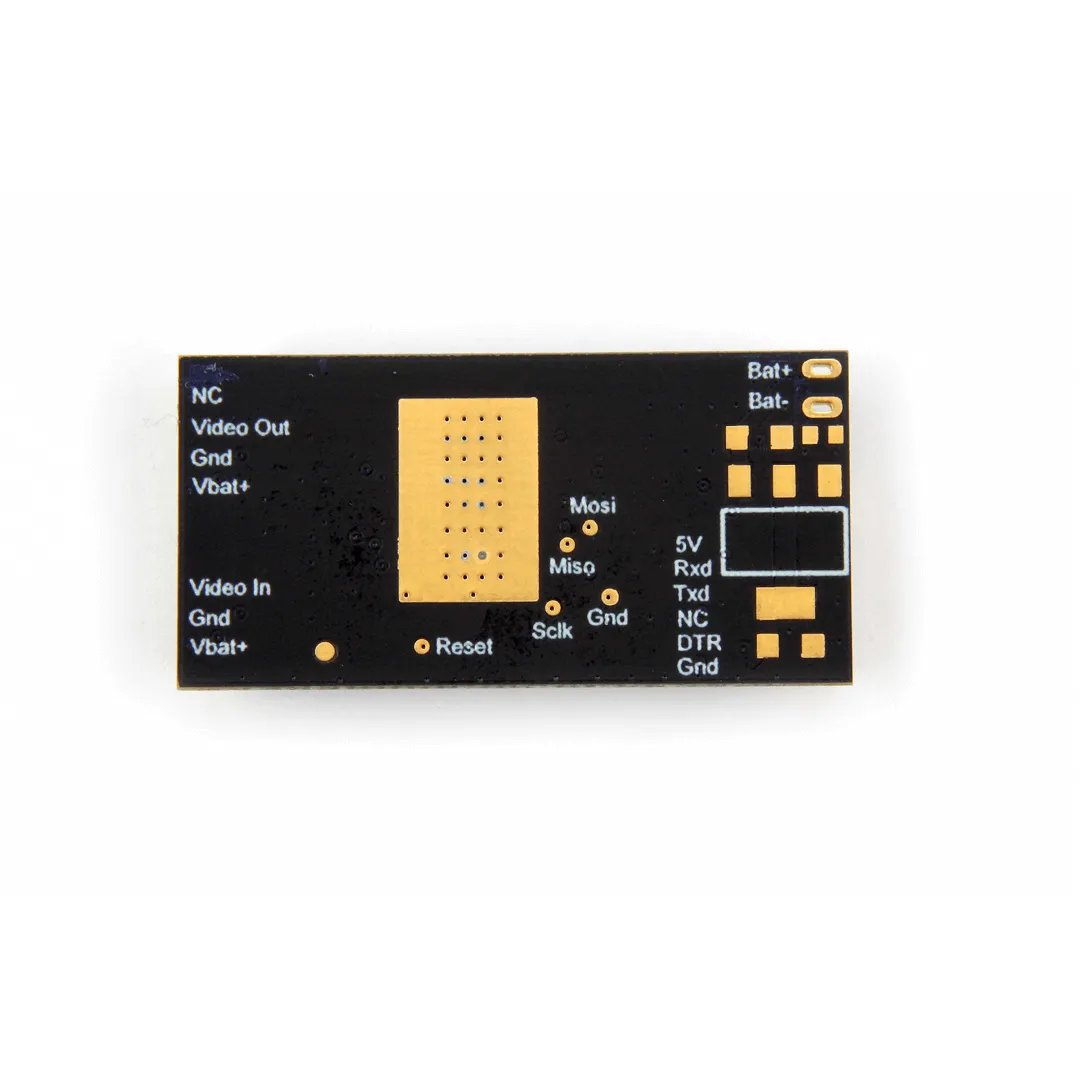

PIN MAP
Diagram

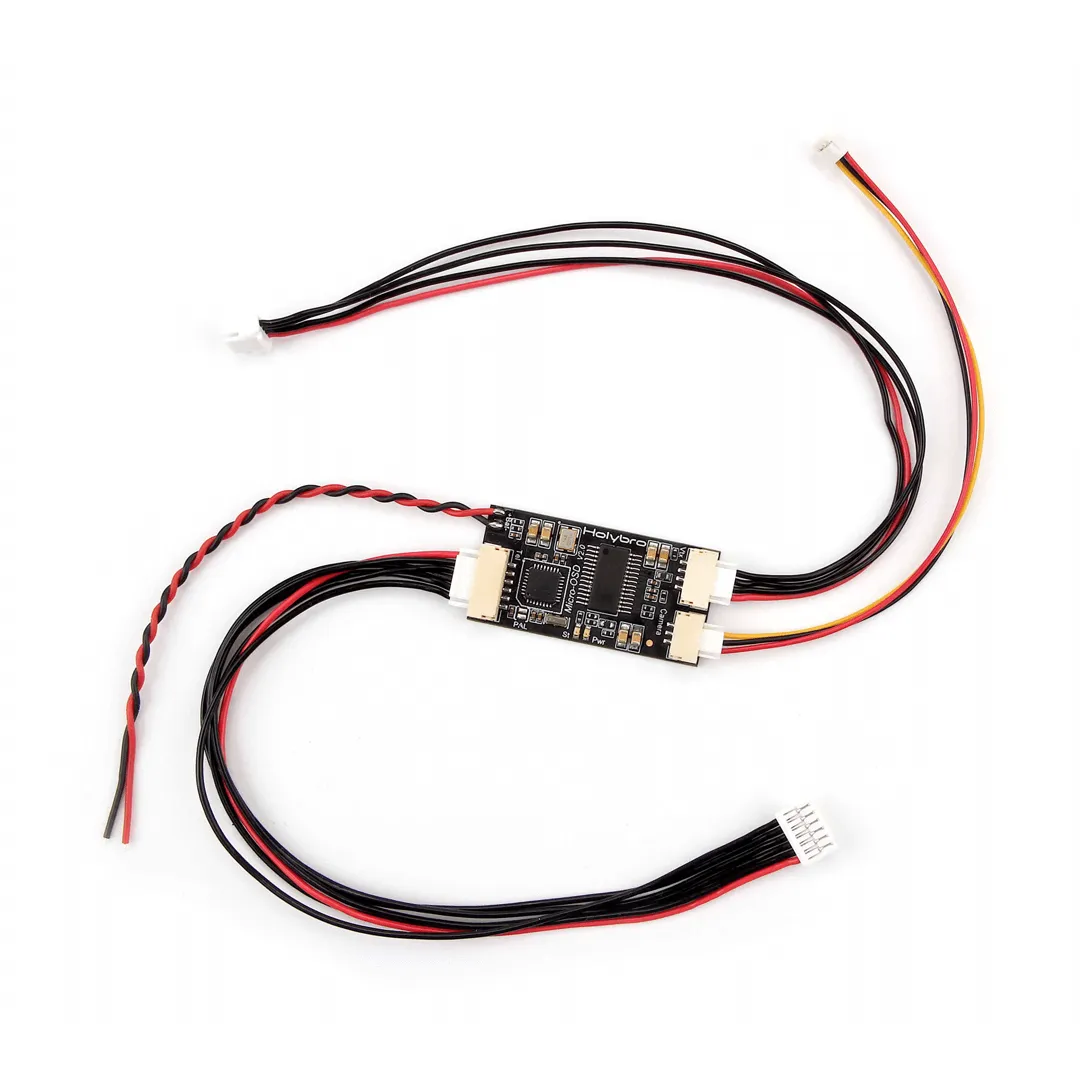

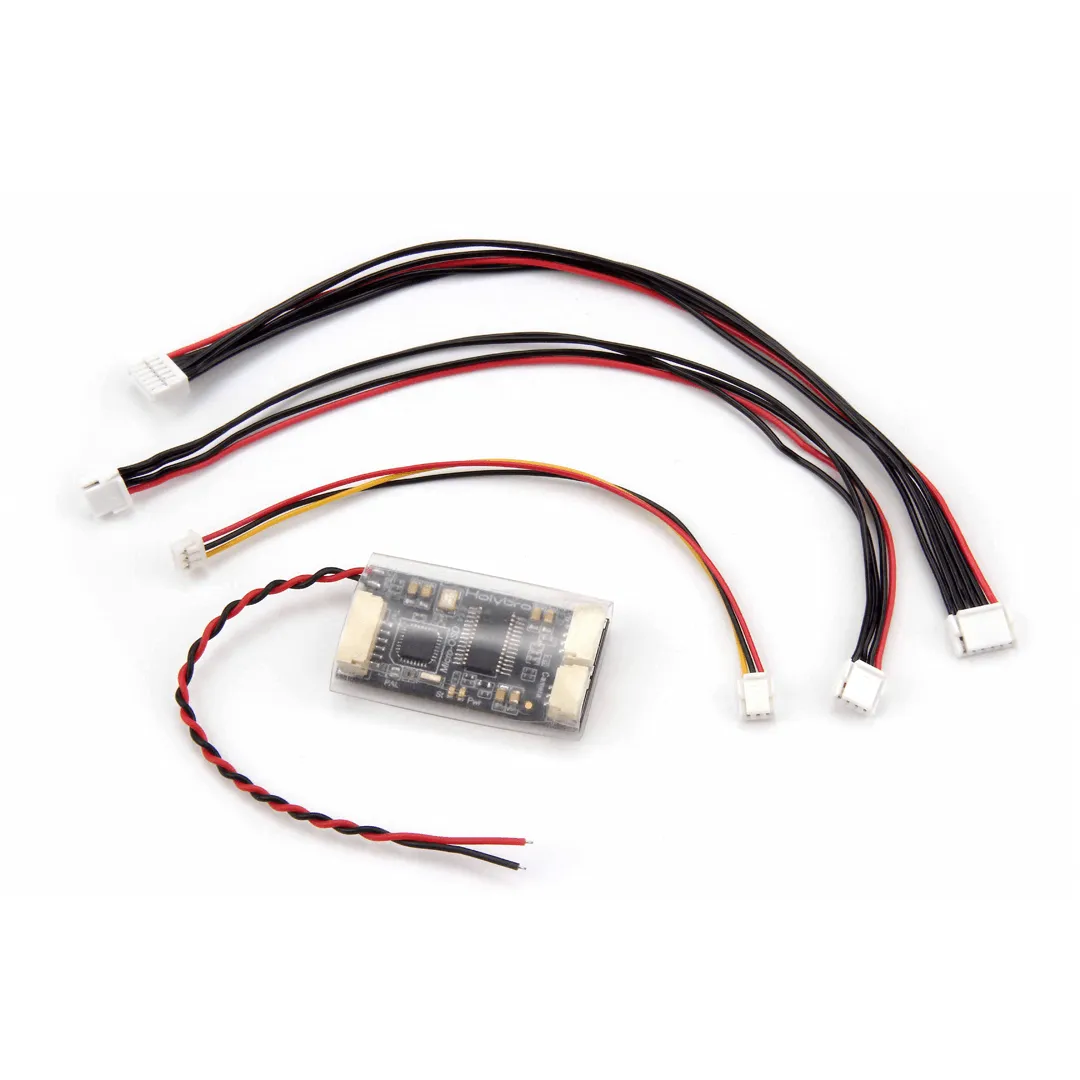

Included:
Micro OSD * 1
GH 6P cable * 1
GH 4P cable * 1
GH 3P cable * 1
